Semi-automatic Container Spreader

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Description

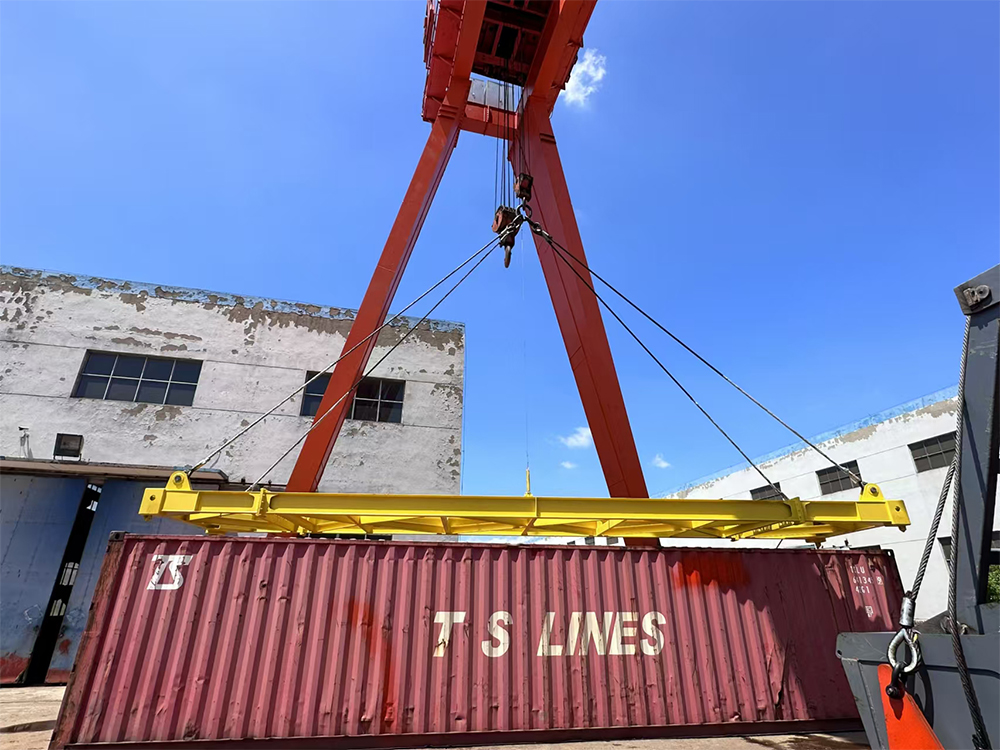

The semi-automatic container spreader is designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twistlocks are activated by landing and lifting containers.

1.Available in 20' and 40' versions to handle 20-40 ISO containers.
2.Capacity up to 40 Tons
3.Light weight spreader
20' Spreader - 2.0t
40' Spreader - 3.2t

Applications:
Container ships, port, logistics company
Competitive Advantage:
1.Easy operation
2.Strong structure
3.Less malfunction
4.BV,CCS certificate supply

Details

Parameters

Item	20’	40’
Distance between lock centers(length)	≈5853 mm	≈11985 mm
Distance between lock centers(width)	≈2259 mm	≈2259mm
Overall Length	≈6054 mm	≈12186 mm
Overall Width	≈2438mm	≈2438mm
Frame Height	≈573 mm	≈593mm
Dia. of Wire Rope Slings	32 mm	36 mm
Length of Wire Rope Slings	3.5m per piece (4 pieces for each set)	8.5m per piece (4 pieces for each set)
Steel Frame	Material Q345B	Material Q345B
ISO Standard Fixed Twist Lock	Material 42CrMo	Material 42CrMo
Twist Lock Device	Finish the Twist locks action via semi-automatic Elastic lasso	Finish the Twist locks action via semi-automatic Elastic lasso
Min.Working Height	2.68m	5.77m
