Crawler-type Steel Scrap Handler

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

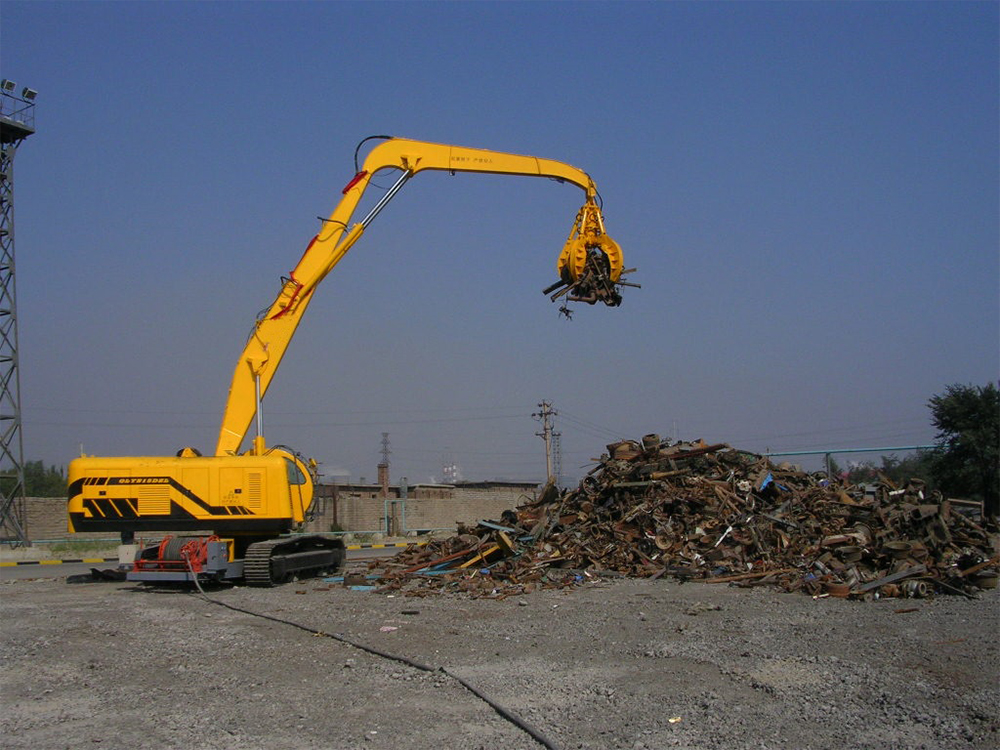

Crawler-type Steel Scrap Handler is driven by diesel engine, in addition to the steel mill yard loading and unloading scrap steel, loading and unloading train skin materials, garbage removal, port loading and unloading materials, scrap steel, etc., but also suitable for small river dredging, and other soft soil environment operations.


Crawler-type Steel Scrap Handler has the following characteristics:
● International optimal configuration to ensure high reliability of the whole machine performance, and easy maintenance.
● Can choose to be equipped with a variety of working equipment (grab, clamp, etc.) to achieve scrap steel, logs, ore, coal, grain, fertilizer, large stones, grass and other bulk materials grab and load.
● Both the main arm and the forearm are equipped with an enhanced working device with double support cylinders to ensure stable and reliable operation.
● Flexible and stable movement during work, high working efficiency, and suitable for soft soil working environment.
● The driver's interior is spacious and comfortable, with a wide field of vision, soundproof and dust-proof, with shock-proof seats, small capacity environmental protection three-dimensional air supply cooling and heating air conditioning, etc., to bring the operator a comfortable and safe working environment.

Details

Parameters

Model

SWL
(t)

Working Radius
(m)

Handling Efficiency
(t/h)

Diesel Engine Power
(KW)

Rotate Speed(r/min)

Main Pump Flow Rate
(L/min)

Dead Weight
(t)

CKH160

2

8

60~80

86/92

1500

2x106

14.6

CKH300

3

10

80~100

96/106

1500

2x120

19.8

CKH500

4

12

120~150

106/116

1500

2x150

26.4

CKH700

5

14

160~200

120/130

1500

2x180

34.5

CKH1000

6

16

200~250

140/155

1500

2x210

47.6

CKH1500

8

18

270~320

183/203

1500

2x270

57.5
