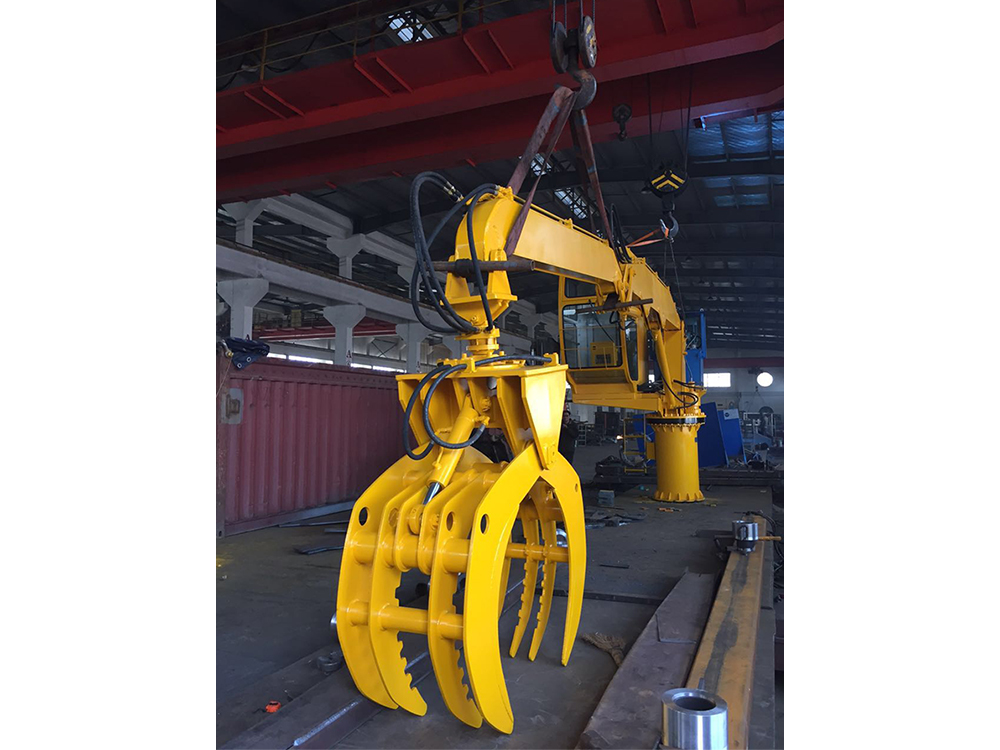

Fixed-type Steel Scrap Handler Crane
Fixed-type Steel Scrap Handler Crane is driven by AC, which is suitable for loading and unloading scrap steel and other bulk materials, loading and unloading vehicles, garbage removal and so on.
Fixed steel grasping machine has the following characteristics:
● International optimal configuration to ensure the high reliability of the whole machine performance, and easy maintenance, cost-effective.
● Can choose to be equipped with a variety of working equipment (grab, clamp, etc.) to achieve scrap steel, logs, ore, coal, grain, fertilizer and other bulk materials grab and load.
● Both the main arm and the forearm are equipped with an enhanced working device with double support cylinders to ensure stable and reliable operation.
● Electric drive, low noise, simple operation, high efficiency.
● A driver's cab is available for outdoor work.
Model |
SWL |
Working Radius |
Handling Efficiency |
Motor Power |
Work Pressure |
Main Pump Flow Rate |
Dead Weight |
FKH160 |
2 |
8 |
60~80 |
15 |
250 |
30 |
3.2 |
FKH300 |
3 |
10 |
80~100 |
22 |
250 |
47 |
4.2 |
FKH500 |
4 |
12 |
120~150 |
45 |
280 |
88 |
5.9 |
FKH700 |
5 |
14 |
160~200 |
55 |
280 |
104 |
8.9 |
FKH1000 |
6 |
16 |
200~250 |
75 |
280 |
147 |
12.5 |
FKH1500 |
8 |
18 |
270~320 |
110 |
280 |
206 |
15.8 |
FKH2000 |
10 |
20 |
350-400 |
132 |
280 |
265 |
19.6 |
