The general port hopper is a storable, and the effective volume is generally 2.5 to 3 times the capacity of the grab bucket.

The general port hopper is provided with an opening and closing gate that can be automatically controlled or manually adjusted for loading vehicles or belt conveyors.

The general port hopper is provided with an operation room, which is equipped with a safety seat, air conditioning, operation table, small electric box, fan, socket, etc.

The general port hopper are provided with platforms and ladders for easy maintenance and operation.

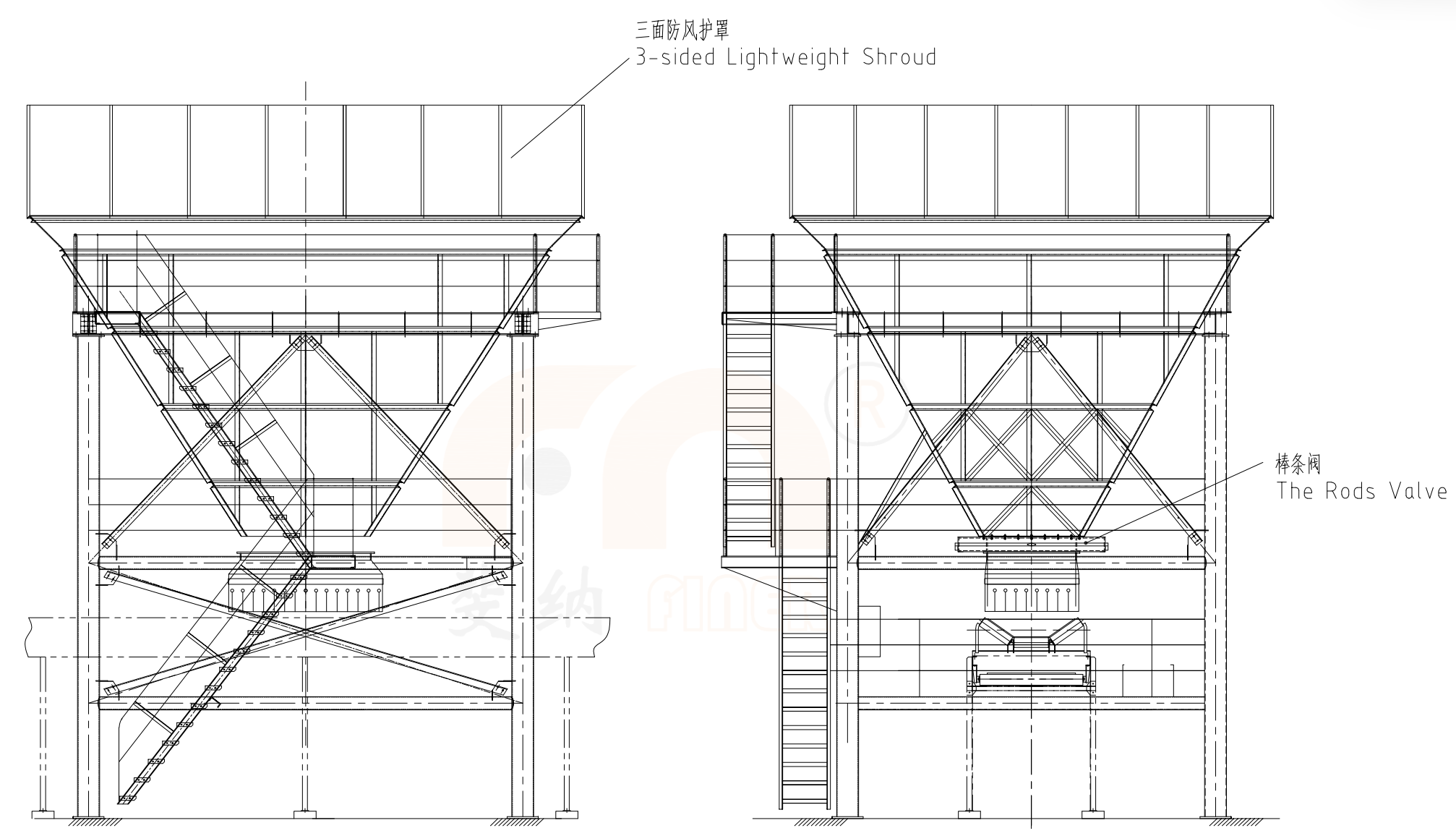

Fixed-type Port Hopper(Truck Loading)

The fixed-type port hopper(truck loading) does not have a moving function, and four lifting ears are arranged at the upper corners of the hopper , which can be moved to the designated working place by lifting the hopper with a crane.

The fixed-type port hopper(truck loading) is provided with a grid, platform and ladder, cable reel, operation room, opening and closing gate, electric control box and lighting system. Specific functions can also be added according to customer requirements.

The fixed-type port hopper(truck loading) needs to specify the loading headroom to ensure that the loading requirements are met during the design and production.

The fixed-type port hopper(truck loading) needs to specify the effective volume, loading and unloading efficiency, material type, material proportion and other information, so as to meet all technical requirements with the most appropriate cost performance at the beginning of the design and reduce the customer's investment in fixed equipment.

We can design and manufacture according to customers’ requirements.
