Mobile-type Port Hopper(Truck Loading)
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

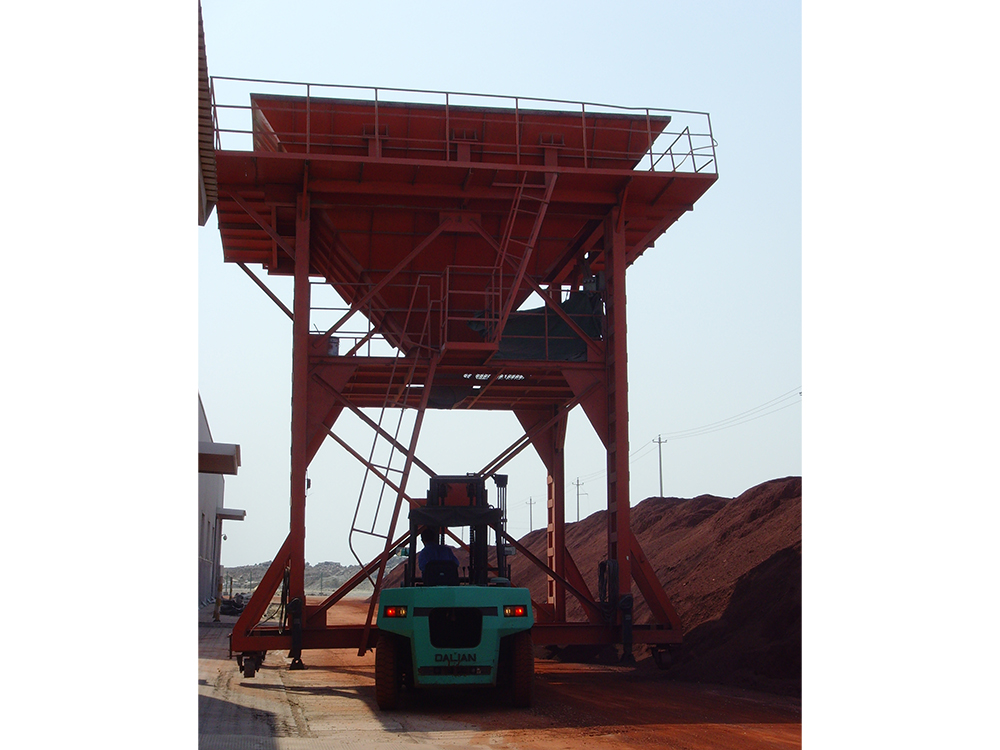

The small mobile-type port hopper(truck -loading), self-weight does not exceed 20t can be implemented with 10t forklift.

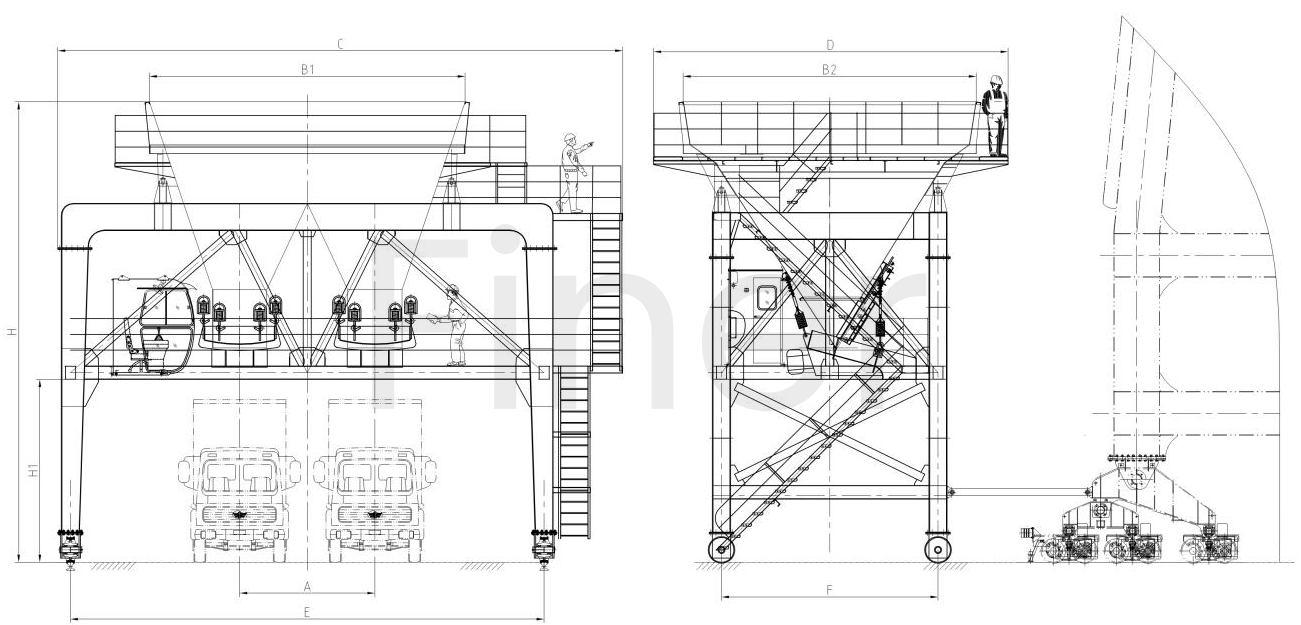

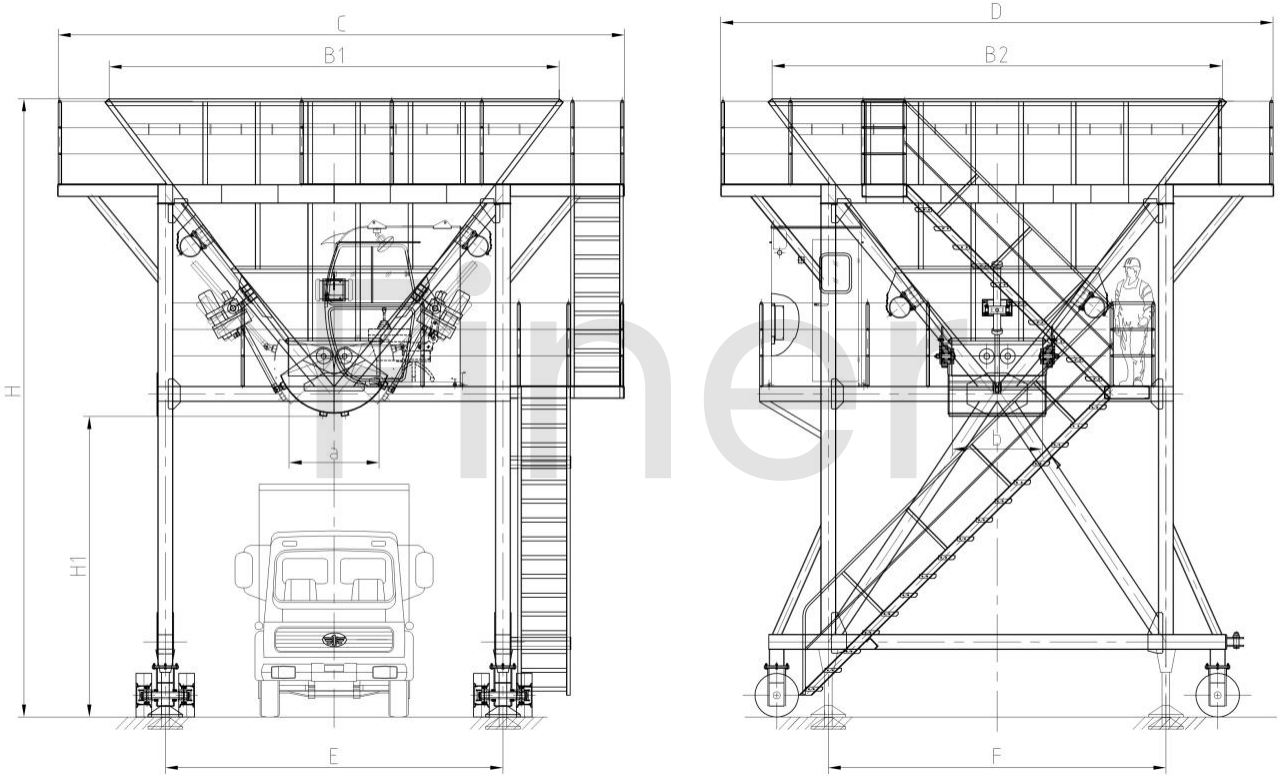

The larger mobile-type port hopper(truck -loading)
a.  It can be moved by traction tire type, and the hopper has its own traction connection mechanism, and the traction mode is trailer traction. In special cases, it can be equipped with walking gear motor and steering mechanism, which is designed to drive the tire by itself.
b.  It can be moved by the traction track of the door crane, the hopper and the door crane (gantry crane) run on the same track, the hopper comes with a traction rod, and is connected with the door crane, and is pulled by the door crane.
c.  The track self-walking mode can be adopted, and the steel wheel of the hopperl track is equipped with a walking deceleration motor to realize the automatic walking of the funnel along the track.

Details

Parameters

Model

Volume
(m³)

Efficiency
(t/h)

Angle
n（°）

Use Height
H(m)

Truck Loading Height
H1(m)

Upper Opening
B1xB2(mm)

Dead Weight
(t)

H-TMT30

30

300~500

60

8.7

3.8

5500x5000

20

H-TMT40

40

500~800

60

9.1

3.8

6000x5000

23

H-TMT0

50

600~1200

60

9.6

3.8

6500x5500

29

H-TMT60

60

800~1600

60

10.0

3.8

7000x6000

35

H-TMT35-2

35

300~500

74

8.4

4.0

6000x6000

18

H-TMT50-2

50

500~800

74

8.8

4.0

7000x6000

21

H-TMT60-2

60

600~1200

74

9.0

4.0

7500x6500

24

H-TMT70-2

70

1000~1500

74

12.4

4.0

7500x7000

27

H-TMT80-2

80

1200~2000

74

12.6

4.0

8000x7500

32

H-TMT35-3

35

200~400

90

8.4

4.6

6500x6500

20

H-TMT55-3

55

400~600

90

9.0

4.6

7500x7500

25

H-TMT75-3

75

600~800

90

9.5

4.6

8500x8000

30



Model

Volume
(m³)

Efficiency
(t/h)

Angle
n（°）

Use Height
H(m)

Truck Loading Height
H1(m)

Upper Opening
B1xB2(mm)

Dead Weight
(t)

H-AMT60

60

800~1200

3200

10

4.0

7000x6000

37

H-AMT80

80

1200~2000

3200

10.5

4.0

7500x6500

42

H-AMT50-2

50

600~1000

3200

10

4.2

6500x6000

32

H-AMT60-2

60

800~1200

3200

10.2

4.2

7000x6200

35

H-AMT70-2

70

1000~1400

3200

10.5

4.2

7000x6500

38

H-AMT80-2

80

1200~1600

3200

10.8

4.2

7500x6700

40

H-AMT60-3

60

800~1200

3200

10.4

4.6

7000x6500

33

H-AMT70-3

70

1000~1400

3200

10,7

4.6

7500x6800

35

H-AMT80-3

80

1200~1600

3200

11

4.6

8000x7000

37



We can design and manufacture according to customers’ requirements.
