Foldable Boom Marine Crane

Home > Products > Marine Crane > Foldable Boom Marine Crane

Foldable Boom Marine Crane

Email: sales@finergrab.com

Tel: 008618917581957

Whatsapp: 8618917581957

Foldable Boom Marine Crane

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Whether marine or offshore, the foldable boom crane is the most flexible and safe lifting crane. It is suitable for a wide range of lifting capacities and for all types of ships. They can be easily installed on all types of ships with limited space. Low weight and high performance makes it popular . Their complex geometry allows for different extension ranges, as the working conditions are different for customers, we can design and manufacture according to customers’requirements.

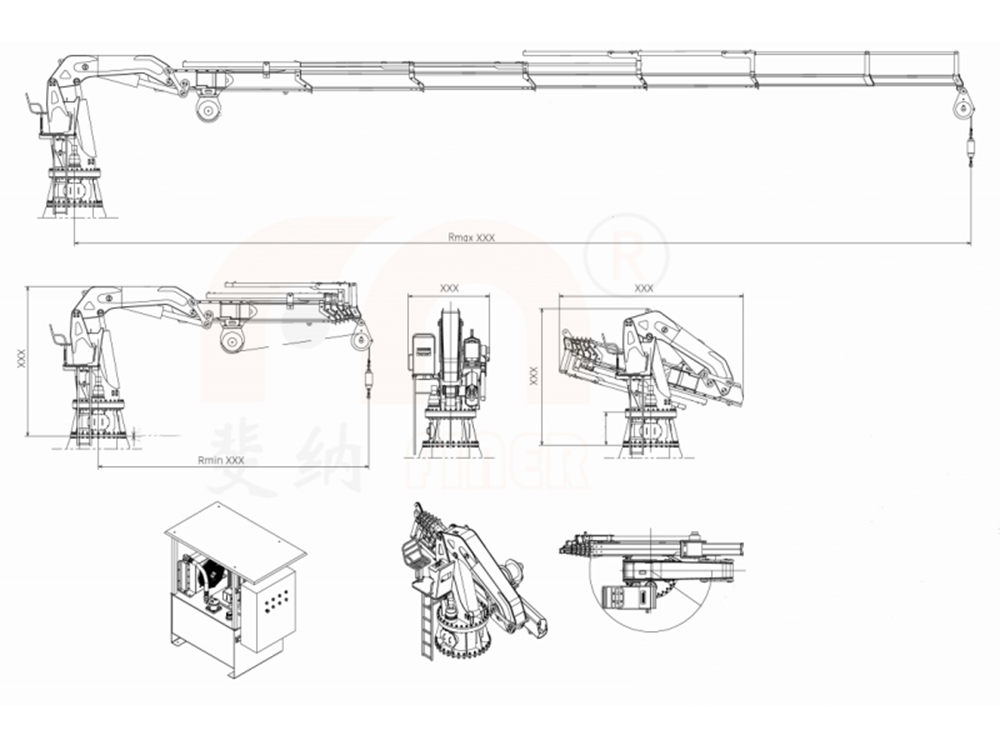

Details

Parameters

Model	Outreach (M)	Lifting Capacity (Kg)	Lifting Moment (KNm)	Total Moment (KNm)	Pedestal Outer Diameter (Mm)	Slewing (Angle °)	Pressure (Bar)	Dead Weight (Kg)
CF20	0.6-3.0	500-300	9-15	15	260	400	250	300-380
CF45	0.8-4.0	1000-500	20-40	45	500	400	250	560-860
CF80	1.5-6.0	1200-500	30-72	80	500	400	250	650-950
CF100	4.6-10.8	2200-750	81-95.6	100	620	360	250	1730-2030
CF120	4.6-10.8	2600-900	97.2-115.5	120	620	360	250	1750-2100
CF150	4.55-12.85	3280-830	106.6-147.3	150	800	360	250	2120-2500
CF180	4.55-12.85	3900-1020	131-173.5	180	800	360	250	2270-2750
CF220	4.4-15	4900-850	128-211	220	900	360	250	3050-3900
CF270	4.4-15	6100-1100	165-256	270	900	360	250	3600-4340
CF320	5.35-17.85	5900-1080	192.8-308.7	320	1050	360	250	4950-6200
CF370	5.35-17.85	6900-1250	223.1-363.8	370	1250	360	250	5300-6800
CF450	5.5-21.5	8150-1300	279.5-446.6	450	1550	360	250	7800-10500
CF550	5.5-21.5	9900-1650	354.8-539	550	1550	360	205	8500-11250
