Double Rope Orange Peel Grab

Home  >  Products  >  Grab Bucket  >  Double Rope Orange Peel Grab

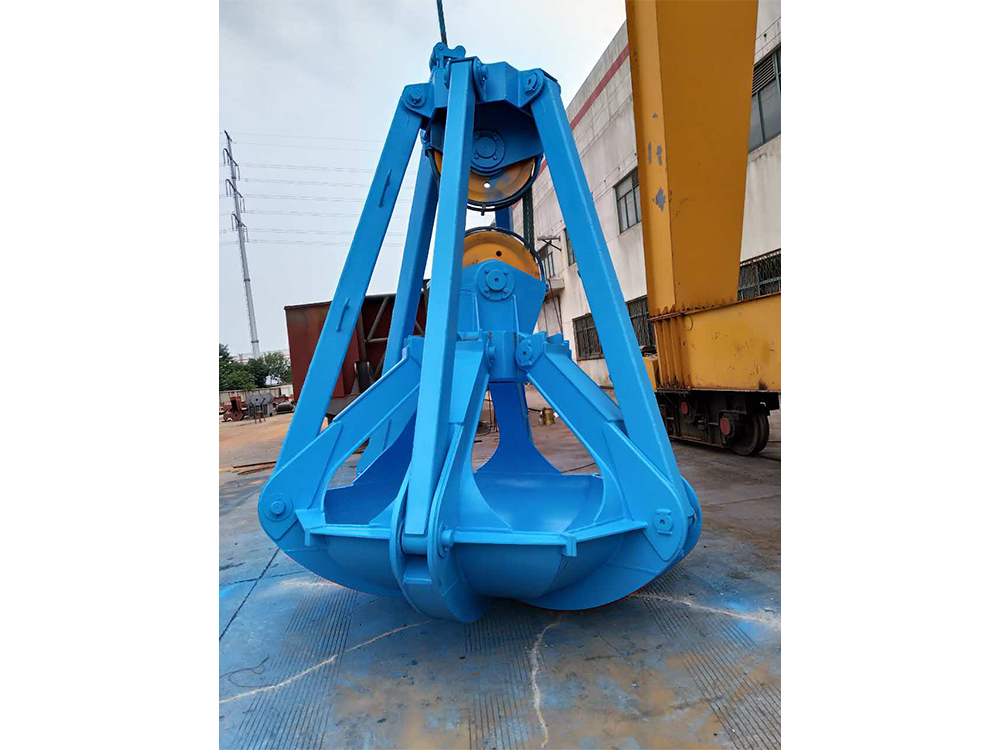

Double Rope Orange Peel Grab

sales@finergrab.com

Tel: 008618917581957

Whatsapp: 8618917581957

Double Rope Orange Peel Grab
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

The double-rope orange peel grab has a support rope and an opening and closing rope, which are wrapped around the drum of the crane support mechanism and the opening and closing mechanism respectively. Double rope grab is reliable, easy to operate, high productivity, widely used in coal, ore, grain, fertilizer, wood and other materials loading and unloading and port dredging operations.

Details

Parameters

Model

SWL
(t)

 Volume
(m³)

Dead Weight(t)

Dia.of Pulley
(mm)

Dia.of Rope
(mm)

Pulley Multiplier
(m)

TRO 5[1]2

5

1

2

450

Φ22

3~5

TRO 6.3[2]2.5

6.3

2

2.5

500

Φ26

3~5

TRO 8[2.5]3.2

8

2.5

3.2

560

Φ28

3~5

TRO 10[3]4

10

3

4

560

Φ30

3~5

TRO 12.5[4]5

12.5

4

5

630

Φ32

4~5

TRO 16[5]6.5

16

5

6.5

710

Φ36

4~5
