Four Ropes Clamshell Grab
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

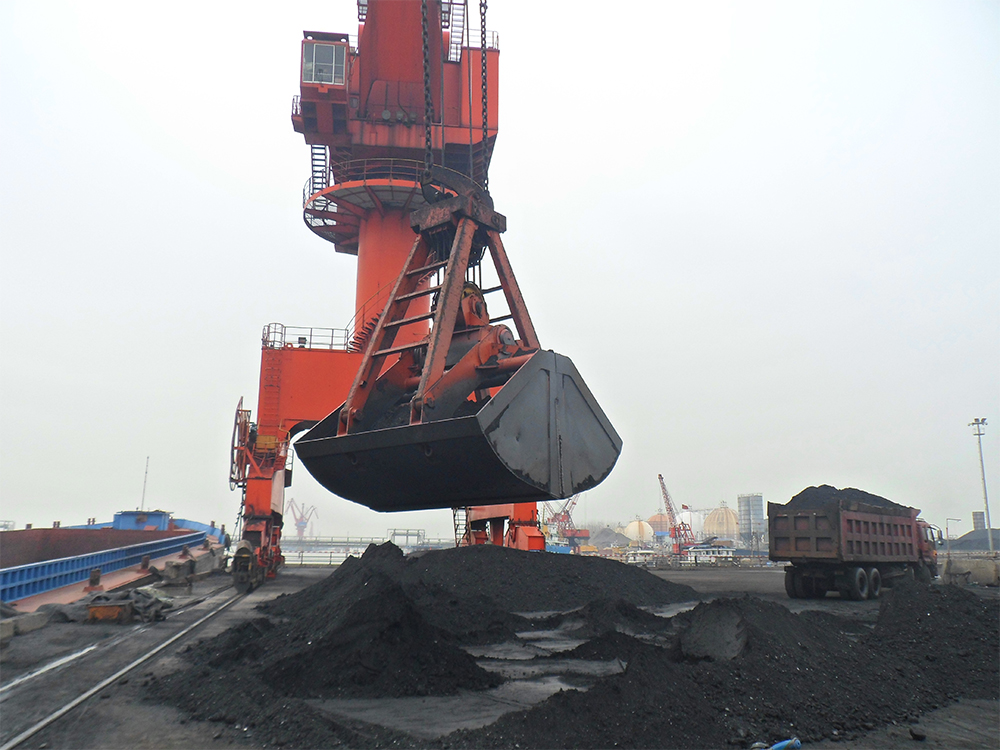

The four-rope clamshell grab has two support ropes and two opening and closing ropes, which are wound around the drum of the crane support mechanism and the opening and closing mechanism. The four-rope grab is reliable, easy to operate and has high productivity. Because of the use of double support rope and double opening and closing rope, the four-rope grab has a greater total weight, and is widely used in the loading and unloading of coal, ore, grain, fertilizer, wood, wood chips, bread iron and other materials as well as port dredging operations.

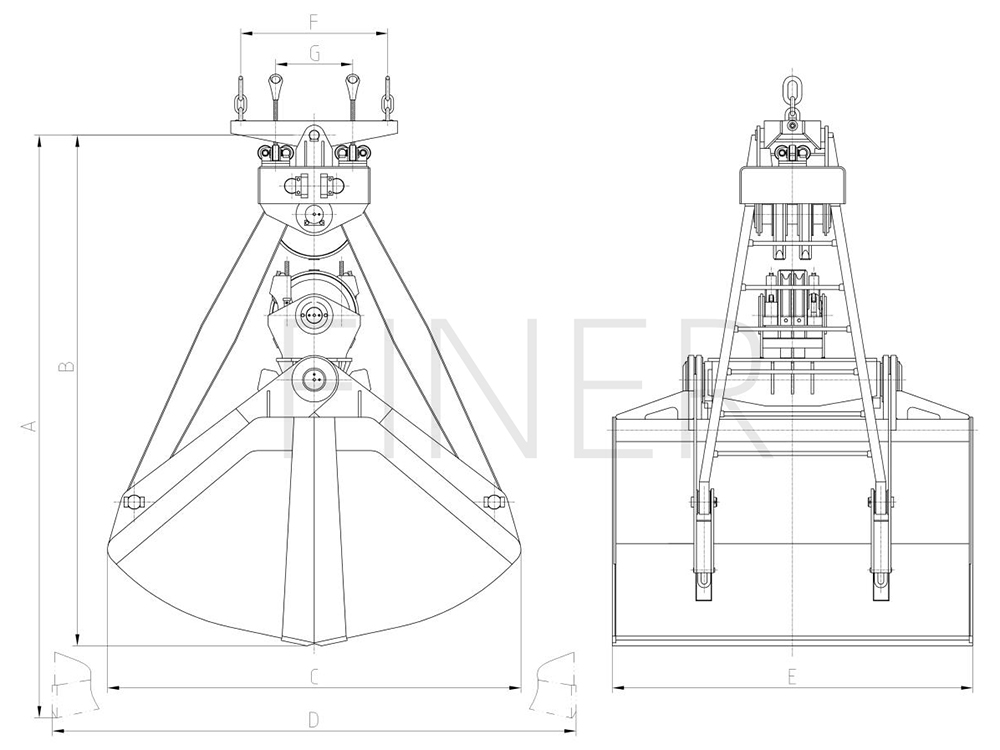

Details

Parameters

Model

SWL
(t)

 Volume
(m³)

Dead Weight
(t)

Dia.of Pulley
(mm)

Dia.of Rope
(mm)

Pulley Multiplier
(m)

FRG 5[1-3]2

5

1-3

2

315

Φ16

3~5

FRG 10[3-6]3.7

10

3-6

3.7

450

Φ22

3~5

FRG 16[5-10]6

16

5-10

6

500

Φ26

3~5

FRG 20[6-14]7.5

20

6-14

7.5

560

Φ28

3~5

FRG 25[8-17]9.5

25

8-17

9.5

630

Φ32

3~5

FRG 32[10-20]12.5

32

10-20

12.5

710

Φ36

3~5

FRG 40[12-25]15.5

40

12-25

15.5

800

Φ40

3~5

FRG 50[15-30]18

50

15-30

18

900

Φ44

3~5

FRG 63[16-40]23.5

63

16-40

23.5

1000

Φ48

4~5

FRG 70[20-45]27

70

20-45

27

1120

Φ53

4~5

FRG 80[25-50]30

80

25-50

30

1250

Φ56

4~5
